Brand Name : Haining Vanshine
Payment Terms : Western Union,T/T,D/A,D/P,L/C
Sound Insulation : Offers soundproofing properties
Application : Interior wall decoration
Fire Rating : B1
Color Options : Welcome to contact us to get the e-catalog
MOQ : 200meters per color or negotiation
Width : 300mm
Size : 300*300*22
Thermal Insulation : Provides good thermal insulation
Delivery Time : 5-7working days
Model Number : FS300-300
Price : $0.6or negotiation
Product Name : Fire Retardant WPC DIY Tiles
Water Resistance : Waterproof and moisture resistant
Warranty : 5
Place of Origin : Zhejiang,China
Design Style : Modern
Single Package Size : 33*33*25
Packaging Details : Carton packing
Certification : SGS,ISO
Supply Ability : 100000pcs per week
Soundinsulation : Good Sound Absorption Properties
Sample : FREE samples
Fire Retardant WPC DIY Tiles Safe Decking
Product Summary
Exclusively engineered for premium commercial infrastructure, high-rise architectural balconies, and bustling public squares demanding absolute fire-containment capabilities and compliance, these premium Fire Retardant WPC DIY Tiles Safe Decking set an industry benchmark in biosecurity. The structural matrix integrates advanced halogen-free, crystalline flame-retardant and smoke-suppressing compounds, delivering exceptional self-extinguishing physics and ultra-low outgassing toxicity. Preventing flame propagation from discarded butts or ambient embers, this modular interlocking system eliminates heavy fire-liability risks for international procurement partners.
Product Features
Advanced Self-Extinguishing Physics Restrains Flame Spread
Nano Smoke Suppressants Mitigate Fatal Gas Toxicity
Structural Integrity Persists Under Extreme Thermal Stress
Technical Specifications
| Parameter | Standard Value | Test Method | Verdict |
| Regular Dimensions | 300mm × 300mm | Tolerance: ±2mm | ✔pass |
| Total Thickness | 22mm | Tolerance: ±1mm | ✔pass |
| Water Absorption Rate | ≤ 1.5% (24h submersion) | EN 317 / GB/T 24508 | ✔pass |
| Flexural Strength | ≥ 20 MPa | ASTM D790 / EN 310 | ✔pass |
| Flexural Modulus | ≥ 1800 MPa | ASTM D790 / EN 310 | ✔pass |
| Impact Resistance | No cracking after 1kg drop from 1m | ASTM D5420 / EN 477 | ✔pass |
| Slip Resistance | R10 – R11 ( Wet barefoot area) | DIN 51130 / ASTM F1679 | ✔pass |
| Formaldehyde Emission | E0 | EN 717-1 / GB 18580 | ✔pass |
| Flammability Rating | Bf1 - s1 | EN 13501-1 / ASTM E84 | ✔pass |

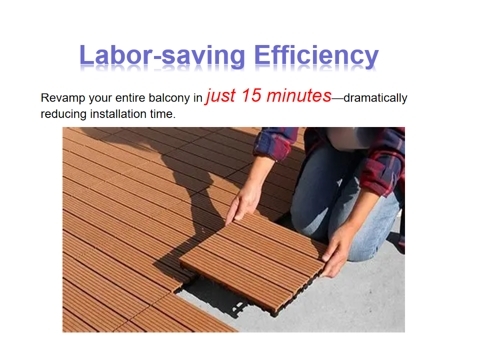

How to Install
Ground Preparation
Start from a Corner
Snap & Lock
Cutting & Trimming
Drainage
The plastic base allows water to flow through. Just ensure the floor has a slight slope toward the drain and keep it clear of debris.
Thermal Expansion
Leave a 5mm-10mm gap between the tiles and the wall to allow for natural expansion in hot weather.



Performance Advantages




Section Designs


![]()

![]()
FAQ
A: Standard plastic interlocking mats have low melting points and catch fire instantly when a burning hot charcoal piece hits them, rapidly expanding a minor incident into a massive structural fire. Our Fire Retardant WPC DIY Tiles Safe Decking are specifically engineered to eliminate this hazard. The specialized co-extruded shield has a high critical radiant heat threshold and triggers a self-extinguishing mechanism upon contact with localized fire. It merely carbonizes at the exact point of impact without supporting combustion, preventing flame spread across your public space.
A: This is a vital biosecurity concern for commercial specifications. Standard PVC and low-grade plastics release thick, blinding black smoke and highly corrosive gases like hydrogen chloride when burned. Our tiles solve this by utilizing a advanced non-halogenated, mineral-based formula. When exposed to extreme temperatures, the nano-suppressants inside the matrix react to form a solid, glassy carbon barrier that seals off oxygen. This drops smoke density to minimal levels and prevents the formation of lethal toxic gases, ensuring clear evacuation paths during an emergency.
|
|
B1 Fire Retardant WPC DIY Tiles 300x300mm Interlocking WPC Decking Tiles Images |
